Marine Propeller Cavitation is a destructive physical reality that degrades solid metal surfaces through localized shockwaves. It is not merely a trail of harmless bubbles behind a vessel. These shockwaves occur due to rapid pressure drops and violent vapor implosions along the blade surface. Over time, these implosions severely pit and erode the propeller material.
This issue directly impacts operational expenditure. Untreated cavitation leads to immediate thrust loss, heavy hull vibration, and compromised marine propulsion efficiency. Ignoring the problem accelerates wear across the entire driveline, forcing premature maintenance cycles.
Resolving this requires moving beyond symptom management. Frequent welding and grinding repairs are not sustainable. You need engineered hydrodynamic interventions. This article provides a technical evaluation framework to diagnose root causes and select viable mitigation strategies.
Cavitation is a systemic issue: It is rarely just a propeller defect; it is often a symptom of mismatched hull-propeller interaction, improper loading, or suboptimal wake fields.
Financial impact extends beyond the prop: The secondary effects of cavitation include premature wear on shaft bearings, erosion of the rudder and hull appendages, increased fuel consumption, and costly dry-docking delays.
Retrofit solutions offer measurable ROI: Technologies such as propeller boss cap fins and energy saving propeller designs can mitigate specific cavitation types while improving overall hydrodynamic efficiency.
Data-driven diagnosis is mandatory: Effective mitigation requires Computational Fluid Dynamics (CFD) analysis and baseline vibration monitoring to avoid costly trial-and-error modifications.
Zero cavitation is often hydrodynamically impossible at high speeds. It is also economically unfeasible for most commercial fleets. We must define acceptable limits. High-performance vessels tolerate minor tip vortex trailing. Commercial bulk carriers require stable sheet flow. The goal is managing the implosion zone. You must keep it away from the blade surface to prevent material degradation.
Engineers look at the cavitation number to determine the risk level. This dimensionless number relates local absolute pressure to vapor pressure and fluid velocity. When the cavitation number drops below a critical threshold, vapor cavities form. Managing this threshold through operational profiles and blade design is the primary objective for fleet managers.
The Bernoulli principle dictates fluid dynamics across the blade. High fluid velocity occurs on the suction side. This rapid movement drops localized pressure. When pressure falls below the vapor pressure of water, boiling begins. Vapor cavities form rapidly. As these cavities move into higher-pressure zones, they collapse. These violent, high-pressure implosions blast the metal surface.
The force of these implosions is staggering. Micro-jets of water shoot toward the blade surface at supersonic speeds during the collapse phase. This repeated mechanical stress causes work hardening, micro-fracturing, and eventual material loss. The resulting pitting creates a rough surface, which further disrupts flow and accelerates the cavitation cycle.
Different flow disruptions create distinct cavitation profiles. Each requires a specific hydrodynamic intervention.
Tip Vortex: Forms at the blade tips due to pressure bleeding. Often visible as trailing spirals.
Sheet Cavitation: Covers large areas of the suction side. It is stable but dangerous if it collapses on the blade.
Cloud Cavitation: Unstable fragments breaking off from sheet cavitation. Highly erosive and destructive.
Root Cavitation: Occurs near the hub. Often caused by thick blade sections and steep pitch angles.
Vessels experience immediate performance degradation. The propeller loses its traction in the water. Operators feel this during hard maneuvers. Acceleration becomes sluggish. Heavy towing loads exacerbate the slip. The engine RPM increases, but vessel speed stagnates. This indicates severe thrust breakdown.
Vibration is another immediate indicator. As vapor cavities collapse unevenly across the propeller disc, they create unbalanced hydrodynamic loads. These loads transmit through the shafting system, causing noticeable vibration in the aft steering compartment and engine room. Over time, this vibration damages stern tube bearings and mechanical seals.
The business costs accumulate rapidly. Engineering damage translates directly to lost revenue.
Erosion of blade material causes pitting and structural fatigue.
Downstream components suffer severe erosion. Rudders and struts take heavy damage.
Thrust breakdown increases the slip ratio. You burn more fuel for less speed.
Destructive low-frequency noise transmits through the hull. This causes crew fatigue and mechanical wear.
Operating outside the designed power curve is dangerous. Pushing a vessel beyond its hull speed forces excessive slip. The propeller cannot bite the water effectively. This extreme slip triggers massive pressure drops. Severe propeller cavitation inevitably follows. Engines and props must remain matched.
Heavy weather and high sea states also contribute to overloading. When a vessel pitches heavily, the propeller may partially emerge from the water, losing load. As it submerges again, the sudden increase in load spikes the slip ratio, triggering intermittent cavitation. Operators must adjust RPM during heavy weather to mitigate this cyclical overloading.
Incorrect diameter-to-pitch ratios ruin performance. Inadequate blade area forces individual blades to work harder. They carry excessive localized loads. This overloads the pressure differential. Water vaporizes rapidly under these conditions. Proper sizing distributes the thrust load evenly across the entire propeller disc.
A propeller with too much pitch will lug the engine, preventing it from reaching its rated RPM. This creates high torque loads at lower speeds, a prime condition for root and sheet cavitation. Conversely, under-pitched propellers allow the engine to over-rev, leading to high tip speeds and severe tip vortex cavitation.
Water rarely flows perfectly into the propeller disc. Hull appendages and struts disrupt the stream. Blunt aft-body designs create turbulent shadows. This causes uneven pressure distribution across the rotational arc. Blades pass through high and low-velocity zones. This cyclical loading triggers intermittent cavitation flashes.
The wake fraction varies significantly depending on the hull shape. Full-form vessels like tankers have a very uneven wake field compared to fine-form vessels like naval destroyers. Engineers use wake equalization ducts or pre-swirl stators to condition the water flow before it hits the propeller, reducing the severity of these irregularities.
Minor physical damage acts as a catalyst. Dings from debris create flow separation. Marine growth disrupts the boundary layer. Poor repair work leaves uneven surfaces. These imperfections act as nucleation sites. Vapor bubbles form easily on these rough spots.
Regular underwater polishing is essential. Maintaining a smooth surface finish (typically Rubert scale A or B) delays the onset of cavitation. Even a thin layer of slime can increase frictional drag and alter the pressure distribution enough to trigger localized pitting on an otherwise healthy blade.
You must distinguish between these two phenomena. True cavitation is pressure-induced vaporization. Ventilation involves drawing atmospheric air into the prop path. Ventilation happens in tight turns or shallow drafts. Their diagnostic pathways differ completely. Mechanical solutions for one will not fix the other.
Ventilation often sounds like a sudden engine over-rev, accompanied by a complete loss of thrust. Cavitation is usually characterized by a continuous rumbling or crackling noise, like gravel passing through the propeller. Anti-ventilation plates can solve the former, but hydrodynamic redesign is required for the latter.
Modern blade geometry delays the onset of vapor implosions. Integrating an energy saving propeller utilizes high-skew designs. Custom-rake profiles smooth out loading cycles. Increasing the Blade Area Ratio distributes the load. However, you must balance this. Higher area increases frictional drag. You trade slight drag for massive cavitation resistance.
Advanced CNC machining allows for complex variable pitch distributions. By unloading the blade tips and concentrating thrust closer to the hub, designers can significantly reduce tip vortex cavitation. These custom profiles are tailored to the specific wake field of the vessel, ensuring optimal performance across the primary operating profile.

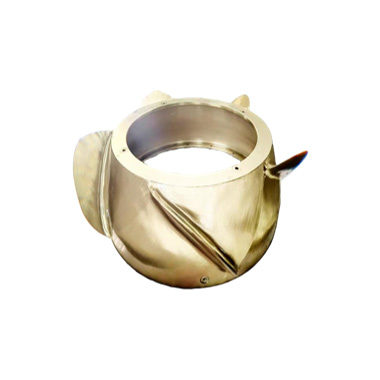

Hub vortex cavitation destroys rudders. Installing propeller boss cap fins provides a direct fix. These fins break up the concentrated vortex behind the hub. They diffuse the destructive energy. This eliminates a major source of erosion. It also recovers rotational energy. You can boost overall efficiency by 2% to 5%.
The installation of these devices is straightforward and can often be completed during a standard dry-docking period without removing the propeller. The fins are aligned with the slipstream to catch the rotational flow exiting the blade roots, converting that wasted energy into forward thrust while simultaneously neutralizing the low-pressure core of the hub vortex.
Vibration destroys shaft seals and bearings. Effective propeller vibration reduction requires trailing edge modifications. Anti-singing edges manage vortex shedding. They reduce blade-rate frequency vibration. Dynamic balancing is also critical. ISO standard tolerance machining ensures smooth rotation. This stops harmonic vibrations from traveling through the driveline.
Vibration analysis using hull-mounted accelerometers can pinpoint the exact frequency of the disturbance. If the frequency matches the blade pass rate (RPM multiplied by the number of blades), the propeller is the likely culprit. Modifying the trailing edge geometry alters the shedding frequency, moving it away from the natural resonant frequencies of the hull structure.
Decision-makers must weigh solutions based on vessel type. Low-speed bulk carriers have different needs than high-speed ferries. Workboats require robust, damage-resistant designs. Analyze your operational profile before committing to hardware changes.
Vessel Type | Primary Cavitation Risk | Recommended Mitigation | Expected Outcome |
|---|---|---|---|
Bulk Carrier | Hub Vortex / Root | Propeller Boss Cap Fins | Improved efficiency, reduced rudder erosion |
High-Speed Ferry | Sheet / Cloud | High-Skew Custom Propeller | Delayed cavitation onset, smoother ride |
Heavy Towing Workboat | Tip Vortex / Overload | Increased Blade Area Ratio | Better grip, reduced slip ratio |
Naval Destroyer | Tip Vortex / Noise | Variable Pitch / Wake Equalization | Reduced acoustic signature, delayed inception |
Analyze the cost-to-benefit ratio carefully. Retrofitting existing vessels is often highly effective. Adding a PBCF during routine dry-dock is scalable. Commissioning a fully optimized, custom-machined propeller requires more capital. Evaluate your fleet's age and remaining service life.
For older vessels, simple modifications like trailing edge grinding or installing a wake equalizing duct offer the best return on investment. For new builds or vessels undergoing major refits, investing in a fully optimized propulsion package based on extensive CFD analysis provides the lowest long-term operational costs.
Cavitation mitigation aligns with environmental compliance. Reducing underwater radiated noise is becoming a priority. Improving fuel efficiency is mandatory. These upgrades help meet IMO EEDI/EEXI and CII regulations. Efficient propulsion reduces your carbon footprint.
Port authorities are increasingly implementing noise restrictions to protect marine life. Vessels with severe cavitation generate high levels of broadband noise. Upgrading your propulsion system to minimize cavitation not only saves fuel but also ensures compliance with these emerging environmental regulations, potentially reducing port fees.
Designing a propeller entirely immune to cavitation is impractical. It often results in a massive, inefficient blade. This drastically reduces top speed. It ruins fuel economy. You must accept a compromise. Manage the implosions rather than trying to eliminate them entirely.
Increasing the blade area ratio reduces the load per square inch, delaying cavitation. However, the increased surface area generates more skin friction drag. Engineers must find the sweet spot where the reduction in cavitation drag offsets the increase in frictional drag, optimizing the overall efficiency for the vessel's cruising speed.
Repeatedly welding and grinding cavitated props is dangerous. It does not address the hydrodynamic root cause. Manual grinding alters blade profile geometry. It destroys the original pitch distribution. This often worsens the issue over time. The localized loading becomes more severe.
When repairs are necessary, they must be performed by certified technicians using precise templates. The repaired area must be restored to the original design geometry. Simply filling the pits with weld metal and grinding it smooth will only shift the cavitation zone to a different part of the blade, often causing more rapid degradation.
Do not guess at hardware modifications. Invest in 3D scanning first. Conduct a thorough wake field analysis. Run CFD modeling before cutting metal. Simulation isolates the exact pressure drops. It proves the concept before you spend capital on physical changes.
Modern CFD software can accurately predict cavitation inception and extent. By simulating the propeller operating in the actual wake field of the hull, engineers can test multiple blade designs virtually. This iterative process ensures the final physical propeller will perform exactly as expected, eliminating the risk of costly trial-and-error modifications.
Marine propeller cavitation remains a solvable hydrodynamic challenge. You must isolate the specific type and cause of the pressure drop. Accurate diagnosis prevents wasted capital. Prioritize non-invasive operational adjustments first. Conduct a thorough wake-field analysis.
Implement targeted retrofits like boss cap fins when applicable. Reserve full propeller replacement for cases of severe mismatch. End-of-life wear also justifies complete replacement. Take the following steps to address your propulsion issues:
Schedule a professional hydrodynamic assessment to identify the specific type of cavitation affecting your vessel.
Commission a CFD analysis of your current setup to map the wake field and pressure distribution.
Consult with a marine engineer to evaluate energy-saving retrofit options tailored to your operational profile.
Implement a strict underwater maintenance schedule to keep blade surfaces smooth and free of marine growth.
A: It is caused by localized pressure dropping below the vapor pressure of water. High blade velocity creates this pressure drop. Water boils, forming vapor bubbles that violently implode on the metal surface.
A: It disrupts the smooth flow of water over the blades. This causes thrust breakdown and increases the slip ratio. The engine burns more fuel to maintain the same vessel speed.
A: Cavitation is pressure-induced vaporization of water. Ventilation occurs when atmospheric air is drawn down from the surface into the propeller blades, usually during tight turns or in shallow water.
A: They cannot eliminate all types. However, they are highly effective at breaking up hub vortex cavitation. This eliminates erosion on the rudder and recovers lost rotational energy.
A: The violent implosion of vapor bubbles creates shockwaves. When cloud or hub vortex cavitation collapses against the rudder or struts, it blasts away the metal, causing severe pitting and structural fatigue.
A: Modifying the trailing edges with anti-singing profiles helps manage vortex shedding. Ensuring the propeller meets strict ISO standard tolerance machining and dynamic balancing also reduces harmonic vibrations.
