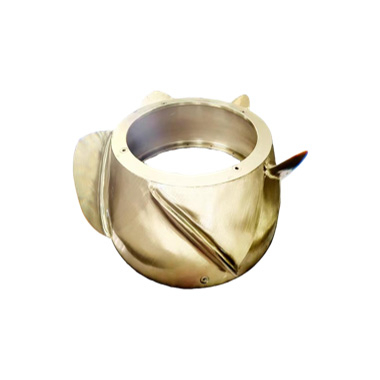

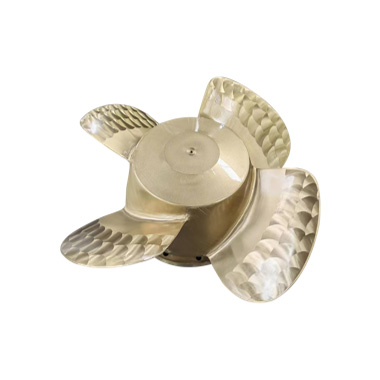

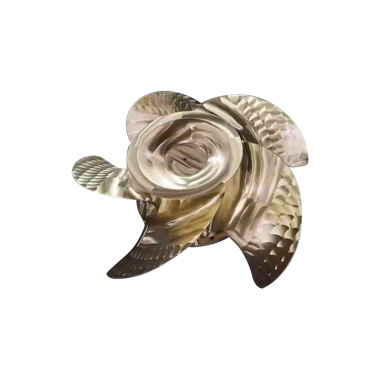

A Propeller Boss Cap Fin, also known as PBCF or Hub Vortex Absorbed Fins, is installed behind the propeller hub to help reduce hub vortex energy loss and improve the flow field behind the propeller. For vessels planning propulsion efficiency upgrades, it can be considered as a compact marine energy saving device for fixed pitch propeller applications.
Zhenjiang JinYe Propeller Co., Ltd. manufactures custom Propeller Boss Cap Fins using Ni-Al Bronze Cu3 material. Products can be made according to propeller drawings, hub dimensions, vessel type, operating requirements, and classification-related project needs.
Why Use a Propeller Boss Cap Fin?
Reduces Hub Vortex Energy Loss
During propeller rotation, part of the flow energy may be lost in the vortex formed behind the propeller hub. A Propeller Boss Cap Fin is designed to weaken this hub vortex and guide the water flow more smoothly behind the propeller.
Supports Propulsion Efficiency Improvement
By improving the flow around the propeller hub area, a PBCF may help reduce unnecessary energy loss and support better use of propulsion power. The actual effect depends on propeller geometry, vessel operating profile, installation condition, and verification method.
Compact Energy-Saving Retrofit Option
Compared with major propulsion system modifications, a boss cap fin is a relatively compact appendage. It can be considered during propeller replacement, vessel maintenance, dry-dock planning, or energy efficiency upgrade projects.
Suitable for Fixed Pitch Propeller Systems
JinYe’s Propeller Boss Cap Fin category is positioned for marine FPP energy saving applications. It can be customized according to the existing propeller hub, blade number, rotation direction, and vessel operating condition.
How PBCF Works Behind the Propeller
A standard boss cap may allow a concentrated hub vortex to form behind the propeller. This vortex can disturb the slipstream and reduce the effective use of propeller energy. A properly designed Propeller Boss Cap Fin adds fins around the cap to help control this flow.
The goal is not to increase engine output, but to improve how the water flow leaves the propeller hub area. When the design matches the propeller, the device may contribute to smoother wake flow, lower energy loss, and improved propulsion efficiency.
| Design Focus | Purpose |
|---|
| Hub vortex reduction | Helps weaken the vortex behind the propeller boss cap |
| Flow guidance | Supports smoother water flow after the propeller |
| Custom fin arrangement | Matches propeller blade number, rotation direction, and hub geometry |
| Marine bronze material | Supports seawater durability and underwater service |
| Drawing-based manufacturing | Improves fit with the existing propeller and shaft arrangement |
Material and Custom Design
Ni-Al Bronze Cu3 is commonly used for marine propeller appendages because it offers good strength, corrosion resistance, and durability in seawater environments. For a Propeller Boss Cap Fin, material reliability and dimensional fit are important because the part works directly behind the rotating propeller.
Custom design may consider:
These details help determine the cap size, fin arrangement, machining requirements, and final product specification.
Applications of Propeller Boss Cap Fins
Cargo vessels
PBCF can be considered for vessels with regular operating routes where propulsion efficiency improvement is part of the energy-saving plan.
Bulk carriers
For vessels with long voyage cycles, reducing hub vortex energy loss may support fuel economy improvement over time.
Tankers
Custom boss cap fins can be discussed for fixed pitch propeller systems used in heavy-load marine operation.
Container vessels
A Propeller Boss Cap Fin may be evaluated for vessels where propeller efficiency and operating cost control are important.
Workboats and engineering vessels
Durable Ni-Al Bronze appendages can support vessels that require reliable underwater components for demanding service conditions.
Retrofit and replacement projects
PBCF products can be planned during propeller maintenance, replacement, dry-dock repair, or propulsion efficiency upgrade work.
Manufacturing and Quality Control
JinYe supports Propeller Boss Cap Fin production with casting, machining, material checking, dimensional inspection, and standard export packing. Quality control may include chemical composition analysis, surface inspection, dimensional verification, fitting checks, and non-destructive inspection according to order requirements.
The product category supports Ni-Al Bronze Cu3 material, custom-made specifications, ISO9001 / ISO14001 / ISO45001 management system support, and project discussion involving major classification societies such as DNV, ABS, RS, RINA, BV, KR, BKI, and CCS.
Energy Efficiency and Compliance Notes
A Propeller Boss Cap Fin may be part of a vessel’s energy-saving improvement plan, especially when the goal is to reduce hub vortex loss and improve propulsion efficiency. However, fuel-saving results should not be treated as a fixed percentage without vessel-specific analysis.
EEXI and CII performance depends on the vessel’s full technical and operational profile, including ship type, main engine, speed, cargo capacity, operating pattern, fuel use, and verified calculation method. Shipowners should evaluate compliance with qualified marine engineering, class, or regulatory support.
Custom Propeller Boss Cap Fin Support
For a custom PBCF project, buyers can provide propeller drawings, hub dimensions, blade number, rotation direction, vessel type, operating speed, and classification-related requirements. Based on these details, JinYe can discuss material selection, fin arrangement, machining, inspection, packaging, and delivery.
Custom support may include:
Ni-Al Bronze Cu3 Propeller Boss Cap Fins
Hub Vortex Absorbed Fins
FPP energy saving device manufacturing
Custom cap dimensions and fin layout
Drawing-based machining
Export packing and project documentation support
FAQs
What is a Propeller Boss Cap Fin?
A Propeller Boss Cap Fin is an energy-saving appendage installed behind the propeller hub. It is designed to reduce hub vortex energy loss and improve flow behind the propeller.
How does PBCF improve propulsion efficiency?
It helps weaken the hub vortex behind the propeller boss cap. When properly designed and matched with the propeller, it may support smoother water flow and reduce unnecessary energy loss.
Can PBCF guarantee 5% fuel savings?
No fixed fuel-saving percentage should be guaranteed without vessel-specific analysis. Actual results depend on vessel type, propeller geometry, operating speed, installation condition, and verification method.
Can Propeller Boss Cap Fins support EEXI or CII improvement?
A PBCF may support an energy-saving improvement plan, but it does not automatically guarantee EEXI or CII compliance. Compliance should be evaluated based on the vessel’s complete technical and operational data.
What material is used for Jinye Propeller Boss Cap Fins?
JinYe commonly uses Ni-Al Bronze Cu3 for Propeller Boss Cap Fins because it is suitable for marine underwater service and propeller-related components.
Can the product be customized from drawings?
Yes. Boss cap dimensions, fin arrangement, material, machining requirements, and packaging can be customized according to propeller drawings and project requirements.
For custom Propeller Boss Cap Fins, Hub Vortex Absorbed Fins, material selection, or project quotation support, please contact our team with your propeller drawings and vessel information.
