A failing bow thruster instantly compromises vessel maneuverability in tight quarters. Sudden failures drastically increase docking risks and trigger frustrating operational delays. You need reliable transverse thrust when crosswinds hit the marina. When faced with unresponsiveness, many operators guess at the solution. They replace expensive parts blindly. However, thruster failures strictly fall into three distinct categories. You will find them grouped into electrical, mechanical, or structural faults. Methodical isolation prevents unnecessary component swaps. It restores steering capability much faster.
This guide provides evidence-based troubleshooting focused on safety and efficiency. We will show you how to diagnose clicking relays. You will learn to replace broken shear pins safely. We also cover how to restore hull integrity after structural damage. You will learn exactly when a quick fix must yield to a comprehensive component upgrade.
Symptom mapping is the first step: "Motor running but no thrust" indicates mechanical decoupling (e.g., shear pin), while "clicking relays" point to severe electrical voltage drops.
Structural integrity matters: Thruster block damage compromises the hull's watertight integrity; repairs require strict multi-layered epoxy and fiberglass protocols.
Strategic sourcing: Upgrading consumable parts (like brass pins to stainless) and sourcing components from a reliable marine fixed pitch propeller manufacturer extends operational lifespan.
Environment control prevents failure: Managing moisture in anchor lockers prevents hidden corrosion in aluminum housings and electrical cables.
Effective troubleshooting begins with matching physical symptoms to underlying faults. A systematic approach saves time and prevents you from disassembling working components. We categorize these failures based on immediate operational feedback. Use the diagnostic chart below to guide your initial triage.
Observed Symptom | Evaluation Criteria | Primary Suspects |
|---|---|---|
Motor runs smoothly, zero thrust | Severed physical drivetrain | Broken shear pin, loose retaining nut |
Panel lights up, relays click continuously | Insufficient power or physical binding | Low voltage (<12V), broken brush housing, dislodged coupling |
System unresponsive or intermittent | Continuity breakdown or thermal trip | Corroded battery cables, blown thermal fuses |
Thruster won't shut off (Stuck ON) | Critical safety hazard, electrical short | Fused contacts, contaminated switches |
You press the joystick and hear the motor whining perfectly, but the bow does not move. This clear auditory feedback indicates a severed physical drivetrain. The electric motor is receiving power, but it cannot transfer rotational force to the blades. Your primary suspects are mechanical. Usually, the system has suffered a broken shear pin. Alternatively, a loose propeller retaining nut has caused the splines to disengage entirely. You must inspect the lower unit immediately.
This is arguably the most common complaint among boat owners. You activate the system, the green lights illuminate, but you only hear a rapid clicking sound. This symptom indicates insufficient power under load or severe physical binding. The most frequent culprit is battery voltage collapsing below 11-12V at startup. If the battery is healthy, check the internal motor components. A broken motor carbon brush housing prevents electrical contact. Sometimes, a dislodged rubber coupling binds the rotor physically, locking it in place.
When a Bow Thruster becomes intermittent, it usually signals an electrical continuity breakdown. Thermal protection circuits may also be triggering prematurely. We frequently find corroded battery cable connections at the root of this issue. These thick cables often wick moisture up under their insulation, decaying from the inside out. Blown thermal fuses will also present as a completely unresponsive system. You must trace the wiring harness back to the primary power bank to isolate the break.
This represents a severe safety hazard. A thruster locked in the "ON" position can push a vessel into a dock or another boat forcefully. This implementation risk usually stems from fused relay contacts or heavily contaminated directional switches. The actionable step here is immediate isolation. You must pull the main control fuse or trip the dedicated heavy-duty breaker instantly. Never attempt to counteract the thrust by engaging the opposite direction, as this will likely cause catastrophic electrical failure.
Mechanical failures require physical intervention, often requiring you to work inside a cramped bow locker or dive under the hull. Approaching these repairs methodically ensures you do not inadvertently damage composite materials or compromise the vessel's hull.
The shear pin acts as a mechanical fuse. It breaks intentionally to protect the expensive gearbox when the propeller strikes debris. When troubleshooting, you must lock the propeller safely. Never use your bare hands to hold the blades. Insert a wooden dowel between the propeller blade and the tunnel wall. This safely locks the rotation, allowing you to inspect and remove the retaining nut.
Replacing broken shear pins is straightforward, but reassembly demands precision. When installing the new pin and securing the nut, apply a medium-strength threadlocker. We highly recommend using a product like Loctite 243. You must adhere strictly to manufacturer torque specs. For many standard consumer models, this means tightening to roughly 7.4 ft-lbs. Over-tightening will easily crack plastic or composite propeller blades under operational stress.
Water flow dictates thrust efficiency. You must regularly assess the underwater tunnel for blockages. Barnacles, heavy algae, or ingested debris like stray ropes and fishing nets exponentially increase rotational drag. This drag forces the electric motor to pull more amperage, rapidly causing thermal overload. Clearing this marine growth restores hydrodynamic efficiency and lowers the electrical strain on your battery bank.
The structural block mounting the thruster to the hull is mission-critical. Damage or perforation in this fiberglass thruster block directly threatens hull safety. You cannot rely on quick sealants here. Follow this strict repair protocol for structural flaws:
Grind and Prep: Grind out the damaged fiberglass area completely until you reach solid, dry laminate. Create a wide, beveled edge for maximum adhesion.
Apply Penetrating Base: Apply a heavily thinned epoxy to the exposed fiberglass. This allows the resin to penetrate deep into the exposed fiberglass ends, sealing the core.
Structural Fill: Follow immediately with a thickened epoxy paste. Use this to fill voids and restore the block's foundational shape.
Fiberglass Lamination: Finish with full multi-layered fiberglass lamination over the repaired section. Ensure it cures fully so it withstands heavy sea states without delaminating.
Electrical gremlins frustrate operators more than any other fault. Because propulsion motors demand massive amperage, even minor resistance in the circuit causes total system failure. Mastering electrical diagnostics separates professional repairs from endless part-swapping.
You cannot test a battery's health simply by reading its resting voltage. To diagnose the clicking relay symptom accurately, implement a dynamic voltage drop test. Use a digital multimeter directly at the motor power terminals. Observe the screen during the exact moment of activation. Older batteries, specifically those over five years old, may show a normal resting voltage of 12.6V. However, they can instantly drop to 9V under the massive current draw. This collapse causes the solenoids and relays to disconnect, generating that rapid "click" sound. If the voltage drops below 11V at the motor, you must inspect your batteries and cable runs.
Bow thrusters live in terrible environments. They are typically installed deep in the bow, directly adjacent to wet anchor lockers. This high-moisture environment accelerates decay. You must proactively look for chalky white powder on the motor casing. This powder indicates severe aluminum component corrosion.
Inspect the heavy-gauge wiring carefully. Look under the heat-shrink tubing at the terminal lugs. Hidden capillary moisture wicking pulls saltwater up into the copper strands, turning them green and brittle. To fix this, you must cut back the affected wire to clean copper. Clean the new ends, re-terminate with heavy-duty crimps, and properly seal the compromised connections using marine-grade, adhesive-lined heat shrink.
If the voltage arrives cleanly at the motor but nothing happens, investigate the internal components. You must check the carbon brush housing. A physical fracture of this plastic or composite holder will pull the brushes away from the armature. If the brushes cannot contact the commutator, the motor will halt entirely. Replacing a cracked brush housing often saves the cost of buying a completely new motor unit.
Vessel operators constantly balance the cost of immediate repairs against the long-term benefits of full replacement. Making the right choice requires evaluating material fatigue, parts availability, and hydrodynamic compatibility.
Repeated failures indicate a fundamental weakness in your setup. Business problem framing applies perfectly here: repeated failures of shear pins or propellers due to material fatigue cost far more in downtime than a comprehensive upgrade. If you snap pins every season, your hardware is undersized for your operating environment. Consider transitioning from legacy brass or bronze shear pins to durable stainless steel alternatives. Stainless steel provides vastly higher shear strength. However, you must verify that the new pin will still act as a mechanical fuse, breaking before the internal gearbox gears shatter.

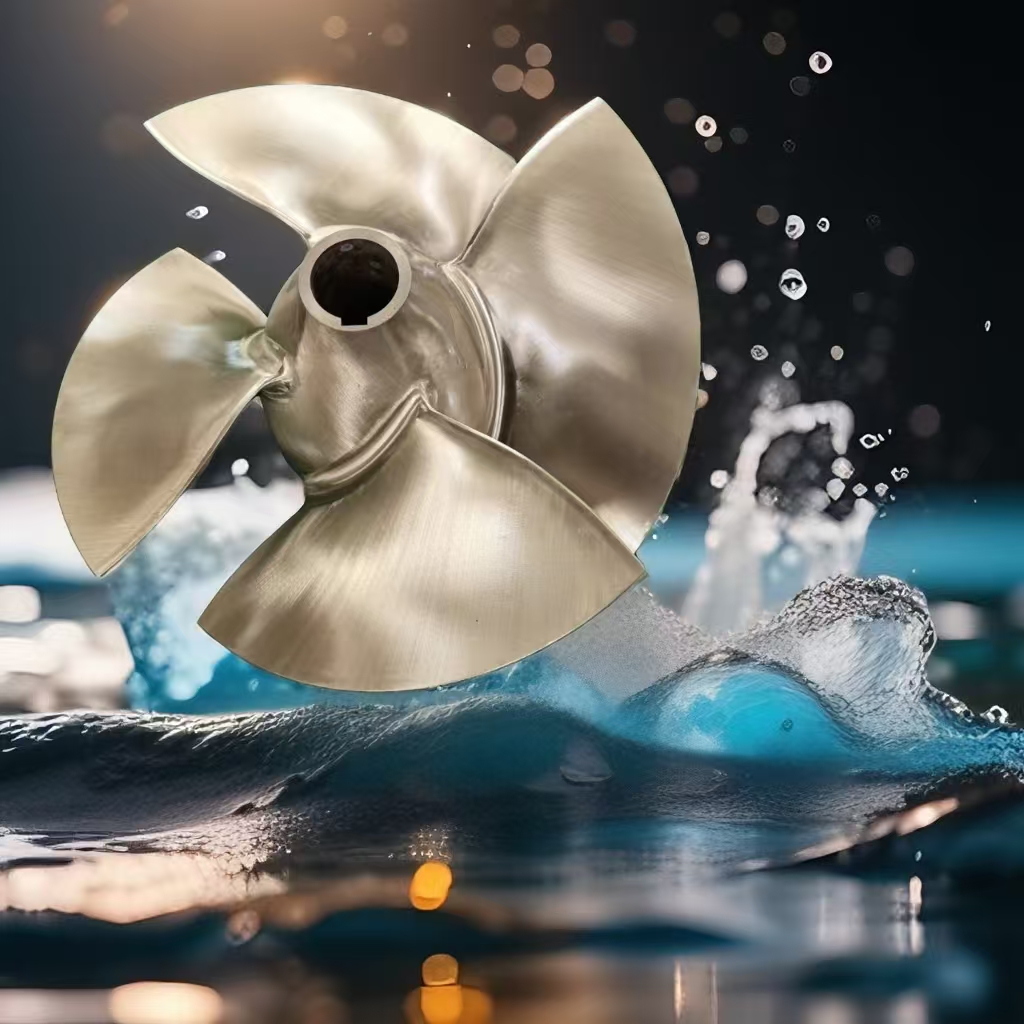

When replacing the lower unit or upgrading the propeller assembly, parts pedigree matters immensely. Working with a specialized marine fixed pitch propeller manufacturer ensures precise hydrodynamic balancing. Specialized vendors utilize superior alloy selections that resist galvanic corrosion far better than off-the-shelf consumer plastics. They understand the harsh realities of commercial and heavy recreational marine environments.
You must prioritize scalability and strict compatibility during these upgrades. Ensure the fixed pitch propeller specified matches the exact RPM and torque output of your thruster motor. Mismatched blade pitches cause aggressive cavitation. Cavitation boils the water across the blade surface, destroying thrust efficiency and causing premature gear wear inside the lower leg.
Proactive maintenance eliminates ninety percent of sudden system failures. We divide these tasks into in-water checks and dry-dock mandates. Staying disciplined with these protocols extends the life of your equipment significantly.
Environmental Monitoring: Monitor the thruster compartment strictly for standing water or high humidity. Ensure bilge pumps in this specific forward zone function correctly.
Fluid Verification: For hydraulic systems, verify the 90-weight gear oil levels in the reservoir. Inspect all high-pressure hydraulic hoses for micro-leaks, chafing, or unexplained pressure drops.
Battery Maintenance: Clean all battery terminals, apply dielectric grease, and ensure hold-down straps remain tight.
When the vessel is out of the water, you have a brief window to service the submerged components. Create a standard operating procedure for every haulout.
Component Focus | Inspection Task | Required Action |
|---|---|---|
Sacrificial Anodes | Check zinc depletion levels | Preemptively replace if over 50% depleted. Keep spares on board. |
Seal Integrity | Look for oil weeping in the tunnel | Replace output shaft seals immediately before re-launching. |
Tunnel Surface | Check for marine growth buildup | Apply specialized, biocide-free anti-fouling paint for high velocity. |
Inspect and preemptively replace sacrificial zinc anodes. Never paint over a zinc anode, as this destroys its galvanic protection capabilities. You must always keep spare zincs on board. Furthermore, look closely for oil weeping from the lower gear leg into the bottom of the tunnel. This weeping serves as a definitive sign that your output shaft seals have failed. They require immediate replacement before re-launching. Finally, apply specialized, biocide-free anti-fouling paint specifically formulated for high-velocity tunnels. Standard hull paint often washes away under the extreme thrust, allowing efficiency-killing marine growth to return rapidly.
Effective bow thruster repair always transitions from careful symptom isolation to decisive action. You must first determine if you face an electrical voltage drop, a mechanical disconnect, or structural fiberglass damage. Once isolated, assess whether a localized fix—like cleaning corroded terminals or swapping a shear pin—will suffice. Sometimes, a complete component overhaul, such as structural epoxy repair or sourcing a properly balanced propeller, is required for long-term safety.
To prevent future emergencies, maintain a strict bi-annual inspection log encompassing both in-water and dry-dock checks. Do not ignore minor fluid leaks or sluggish motor responses. Finally, always consult with certified marine technicians or proven manufacturers when planning structural hull repairs or executing major hydrodynamic component upgrades.
A: Typically caused by a severe battery voltage drop under load, a fractured carbon brush housing, or a physically jammed propeller/coupling. Use a multimeter at the motor terminals during activation to confirm if the voltage is crashing below 11V.
A: Yes, provided you use advanced fiberglass techniques including extensive grinding, thinned-to-thickened epoxy application, and proper lamination. Poor repairs risk catastrophic hull flooding in rough seas. If you lack composite repair experience, hire a professional.
A: Anodes should be checked and typically replaced annually during haulout. You may need to replace them more frequently if the vessel is moored in a hot marina with stray electrical currents. Always keep spares aboard.
A: Many modern systems upgrade to stainless steel for better durability and shear strength. However, you must verify compatibility with your specific thruster's drive shaft. Ensure the stainless pin still breaks before catastrophic gear damage occurs.
