Custom Propeller Boss Cap Fin for Marine Propulsion

Zhenjiang JinYe Propeller provides custom Propeller Boss Cap Fin (PBCF) solutions for marine propulsion systems. PBCF helps reduce hub vortex energy loss and improve propeller flow performance.

With Ni-Al Bronze casting, CNC machining and custom manufacturing capabilities, JinYe supports PBCF projects based on customer drawings and technical requirements.

Get a Quote

Home Propeller Boss Cap Fin

What Is a Propeller Boss Cap Fin?

A Propeller Boss Cap Fin (PBCF) is a marine energy-saving device installed around the propeller boss cap to reduce energy loss caused by the hub vortex behind the propeller.

By influencing the flow around the propeller hub, PBCF helps weaken unnecessary vortex effects and improve the wake flow behind the propeller. This can support better use of propulsion energy and improved hydrodynamic performance without major changes to the existing propulsion system.

View Propeller Boss Cap Fin Products

Key Advantages of JinYe PBCF Solutions

Hydrodynamic Optimization

A Propeller Boss Cap Fin is designed to improve the flow condition behind the propeller hub and support propulsion efficiency improvement.

Compact Energy-Saving Upgrade Option

Compared with major propulsion system changes, a PBCF can be considered as a compact solution during propeller replacement, maintenance, or vessel upgrade projects.

Customized Design Capability

JinYe supports project-based customization to match different propeller configurations and vessel applications.

Long-Term Marine Service Reliability

Using marine-grade materials and strict manufacturing control helps ensure stable performance in demanding underwater environments.

How Does a Propeller Boss Cap Fin Work?

A conventional propeller hub may generate a concentrated vortex behind the rotating propeller. This vortex represents a loss of energy within the propeller wake.

A Propeller Boss Cap Fin adds specially arranged fins around the propeller cap area to influence the water flow behind the propeller hub.

The working principle focuses on:

Reducing unnecessary hub vortex energy loss

Improving the smoothness of propeller wake flow

Supporting better utilization of propulsion energy

Optimizing the hydrodynamic condition around the propeller hub

The actual performance improvement depends on the propeller design, vessel operating condition, installation environment, and engineering evaluation.

Custom PBCF Design Based on Your Propeller

A Propeller Boss Cap Fin should be matched to the existing propeller and hub configuration rather than selected as a standard off-the-shelf component. JINYE develops customized PBCF and Hub Vortex Absorbed Fin solutions according to propeller drawings, hub dimensions, blade arrangement, rotation direction and vessel operating requirements.

Propeller and Hub Geometry

The propeller diameter, boss or hub dimensions and available installation space are reviewed first. These parameters provide the basic dimensional reference for the boss cap and fin arrangement so the finished component can be matched to the propulsion system.

Blade Number and Rotation Direction

The number of propeller blades and the direction of rotation affect the required fin arrangement. JINYE can manufacture customized configurations according to the actual propeller design rather than applying one standard fin layout to different vessels.

Propeller Configuration and Vessel Application

Project requirements may vary between fixed pitch propellers, controllable pitch propellers and different vessel operating conditions. JINYE evaluates the supplied propeller information and application requirements before confirming the recommended PBCF or HVAF configuration.

Material and Manufacturing Requirements

Ni-Al Bronze Cu3 is available for JINYE PBCF and Hub Vortex Absorbed Fin products. Final dimensions, material requirements, machining specifications and inspection requirements can be confirmed according to project drawings and technical specifications.

View PBCF Products

Product Center

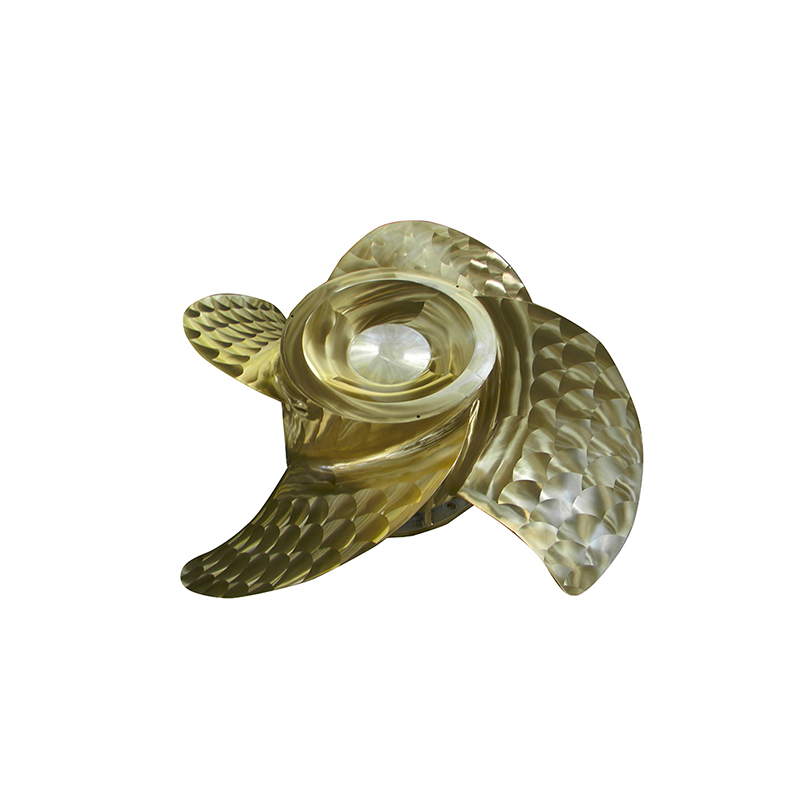

Propeller Boss Cap Fin

Eperienced marine propeller supplier-energy-efficient vortex finned Ni-Al Bronze (CU3)

Inquire

Add to Basket

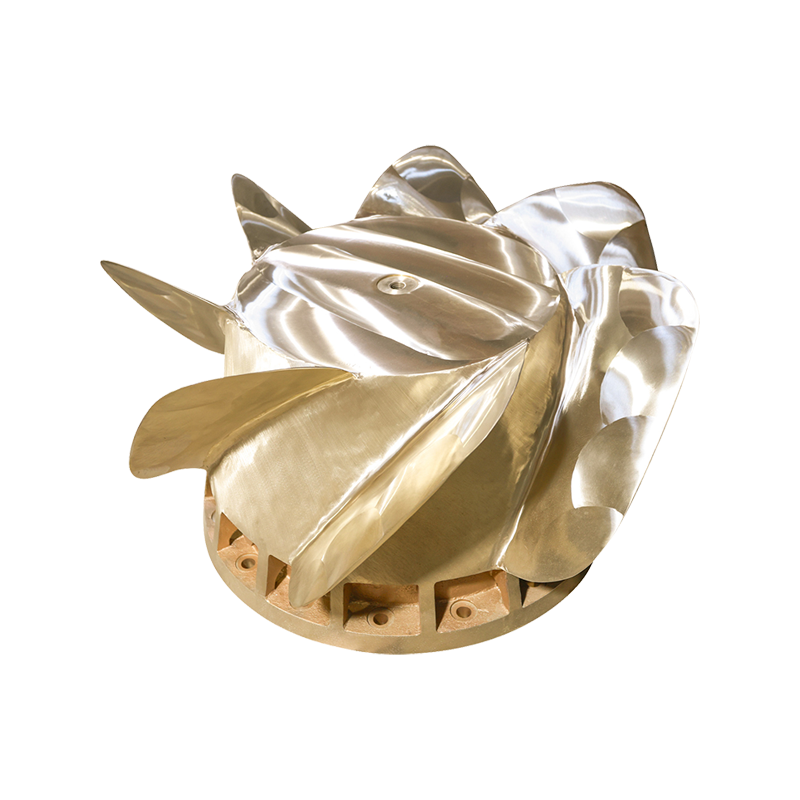

Propeller Boss Cap Fin

Made in China-Ni-AI Bronze (Cu3) -Hub Vortex Absorbed Fins

Inquire

Add to Basket

Propeller Boss Cap Fin

Made in China-Ni-AI Bronze (Cu3) -Hub Vortex Absorbed Fins For CPP

Inquire

Add to Basket

Why Work with Zhenjiang JinYe Propeller?

Experienced Marine Propeller Manufacturer

Founded in 2005, JinYe focuses on high-performance marine propulsion products and provides propulsion solutions for the global shipbuilding industry.

Integrated Production Capability

From casting and machining to inspection and delivery, JinYe supports customized marine component manufacturing.

Engineering-Oriented Customer Support

The team works with customers to understand vessel requirements and provide suitable propulsion solutions.

Global Marine Market Service

JinYe supports international customers through professional communication, technical assistance, and after-sales service.

Manufacturing & Inspection

JinYe manufactures custom PBCF and Hub Vortex Absorbed Fins according to approved drawings and project requirements. Production covers Ni-Al Bronze Cu3 casting, CNC machining, dimensional inspection and material verification to ensure the finished component matches the required propeller and hub configuration.

Where required, additional inspection such as PT or UT testing and project documentation can be arranged according to the applicable technical or classification requirements.

Learn More About JinYe

FAQs

Q: What is a Propeller Boss Cap Fin?

A Propeller Boss Cap Fin is a marine energy-saving device installed behind the propeller hub to help reduce hub vortex energy loss and improve flow conditions around the propeller.

Q: What is the purpose of a PBCF?

The main purpose of a PBCF is to optimize water flow behind the propeller hub and support improved propulsion efficiency.

Q: Can JinYe manufacture customized Propeller Boss Cap Fins?

Yes. JinYe provides customized PBCF manufacturing based on propeller drawings, hub dimensions, vessel requirements, and project conditions.

Q: What material is used for JinYe Propeller Boss Cap Fins?

JinYe uses Ni-Al Bronze Cu3 material for Propeller Boss Cap Fin production, supporting marine underwater applications.

Q: Is a Propeller Boss Cap Fin suitable for retrofit projects?

Yes. PBCF solutions can be considered during vessel maintenance, propeller replacement, and propulsion efficiency upgrade projects.

Send Your Propeller Details for a Custom PBCF Recommendation

Provide your propeller drawings and key project information, and JinYe can review the existing propeller and hub configuration to recommend a suitable PBCF or HVAF solution.
